Co-Extrusion PVC Plastic Sheet Extrusion Line For Twin Wall Hollow Roof Tile
|
商品の詳細:
お支払配送条件:
|
詳細製品概要
| ハイライト: | plastic extrusion line,roof tile making machine |
||
|---|---|---|---|
Co-Extrusion PVC Plastic Sheet Extrusion Line For Twin Wall Hollow Roof Tile
Product Description

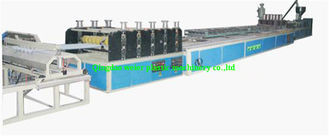

1.This Twin-wall hollow roofing sheet production line consists of extruders, extrusion mould, calibration system, haul-off machine, cutter and stacker.
2.The extrusion mould adopts the latest co-extrusion technology with very precise design with multi-cavities.
3.The shaping mould includes the vacuum calibrating system and special design of cooling runner with excellent cooling effect.
The surface UV-layer is co-extruded with ASA/PMMA bright color, which is not easy to fade
|
PRODUCT NAME |
PVC Hollow Roofing Tile |
|
MODEL |
G-870-HOLLOW |
|
WIDTH (MM) |
Total width:930mm |
|
Effective width: 870mm |
|
|
THICKNESS |
Maxima 10.0mm |
|
MULTIPLE LAYER |
Multi-layer design, have excellent insulation facture |
|
WEIGHT |
4.5kg/㎡ |
Specifications:
|
Main extruder |
SJZS-80+SJ-50 |
SJZS-92+SJ-65 |
|
Width of finished product |
830 mm |
1000 mm |
|
Thickness of finished product |
12mm |
14mm |
|
Drive motor |
55kw+15kw |
110kw+18.5kw |
|
max output |
300kg/h+50 kg/h |
600 kg/h+80kg/h |
Competitive Advantage:
1.The extrusion mould adopts the latest co-extrusion technology with very precise design with multi-cavities. The shaping mould includes the vacuum calibrating system and special design of cooling runner with excellent cooling effect.
2.Extrusion mould with special designed co-extrusion runner,make the ASA extrusion uniformity and use less material.
3.The haul-off machine equips with five sets roller,the roller shape is same with the roofing sheet,avoid the products deformation and has smooth traction.
Applications:

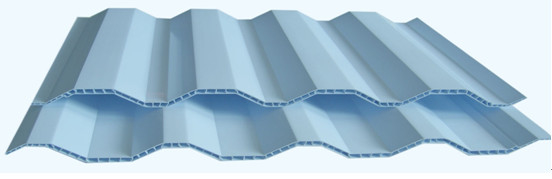

The Twin-wall hollow roofing sheet making machine is mainly used in the production of plastic twin-wall hollow roofing sheet , which compared with traditional plastic roofing sheet, this twin-wall hollow roofing sheet is better for heat and sound resistance. It is suitable for tropical weather with advantage of anti-corrosion, rust-proof, strong durability, and beautiful appearance, easy and fast installation. Because of the stronger rigidity, the twin-wall hollow roofing sheet is widely used in the factories (including chemical and treatment plant)
